² Using windows work platform, the parameters of the dialog box to the form of the processing, the operation is simple;

² Using a single screen operation, do not need to screen switch;

² The software interface has three languages: Simplified Chinese, traditional Chinese and English;

² Self regulation test report mode;

² Test data can be directly called in the main screen;

² Data comparison of multiple curves can be selected by using the method of translation, comparison and so on;

² With a variety of measurement units, metric can switch;

² Automatic return function;

² With automatic correction function;

² Do the top pressure, lateral pressure, tensile, tear, pull hold, holding pressure strength and deformation test etc.;

² With automatic magnification to achieve the most appropriate size of the graphics;

² Function of custom test method;

² Operation analysis of test data;

Model

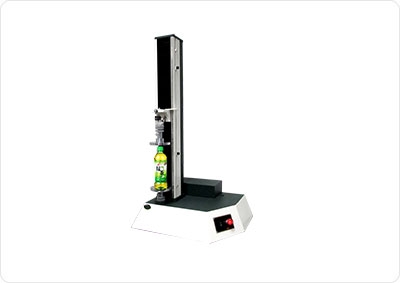

PT-5061B

Capacity selection

100、200KG Optional one

Test items

The top pressure, the deformation of the top pressure, the deformation of the holding pressure, the tensile strength of the film, and the tearing strength of the film

Measurement and control software

All open test software under the Windows platform

Accuracy of measurement

Better than ±1%

Force resolution

1/200，000

Effective range of measurement

1~100%F.S

Deformation display accuracy

Better than±1%

Test speed range

10～510mm/min，Can be arbitrarily set

Test maximum stroke

Maximum 650mm, no fixture

Effective test space

Distance 120mm，Left and right distance ∝

Unit switch

A variety of measurement units, including international units, users can also customize the required units

Stop mode

Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure

Special function

Can be held to pull and hold pressure test

Standard configuration

Top pressure fixture (120mm) 1, film tensile fixture 1, data lines and software system 1 sets, the instrument power supply line 1, CD operating instructions 1, 1 copies of the certificate, 1 copies of warranty

Machine size

About 58×45×125cm(W×D×H)

Machine weight

About 75kg

Power

Stepping motor

Power Supply

1PH，AC220V，50/60Hz，10A Or specify

Optional configuration

Business computer 1, color printer 1, all kinds of test fixture
