Model

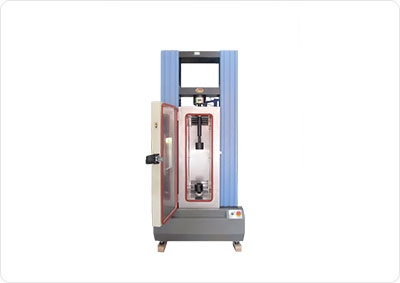

PT-100-200WH

Capacity selection

200kN

Temperature control range

Normal temperature ~200 (with visible window, lighting lamp)

Control mode

P.I.D. Automatic temperature calculation

Distribution accuracy

±1%(1℃) at- room100℃

Measurement and control software

All open test software under the Windows platform

Accuracy of measurement

Better than±1%

Force resolution

1/300000(Full score or equivalent 6 file)

Beam displacement measurement accuracy

Resolution higher than0.0025mm

Deformation display accuracy

Better than±0.5%（In the range of 0.2 - 10mm）

Test speed range

0.01—500mm/min,Stepless speed regulation

Speed control precision

±1%(0.01~10mm/min); ±0.5%(10~500mm/min)

Test force measurement range

0.4%--100%

Constant, constant deformation, constant displacement control precision:

Set the value of <10%FS, set the value of less than 1%
The set value is not less than 10%FS, within the set value of + 0.1%

Deformation rate control precision

The setting value of the rate <0.05%FS is 2%.
The rate is not less than 0.05%FS + 0.5% value set

Test maximum stroke

Maximum 450mm, no fixture

Effective test space

Left and right distance 220mm、Before and after 350mm

Unit switch

A variety of measurement units, including international units, users can also customize the required units

Stop mode

Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure

Special function

The test method can be used to hold the tension, hold pressure, fatigue, bending resistance, bending resistance and shear test.

Standard configuration

Standard fixture 1 payment, software and data line 1 sets, 1 sets of equipment power supply, CD 1 CD-ROM operating instructions, product certification 1 copies, 1 copies of product warranty card

External dimensions(W×D×H)cm

Tension machine size ：113×65×265、Oven size： 105×45×60、Post assembly dimensions ：113×105×265

Machine weight

about 1800kg

Power

Taiwan Dong Yuan AC servo motor

Power Supply

Three-phase：380V±10%,50Hz，Power：3kW

Working environment

Room temperature - 35, relative humidity is no more than 80%
