Your Current Location ：Home
» Products
» Peel Strength Test Machine

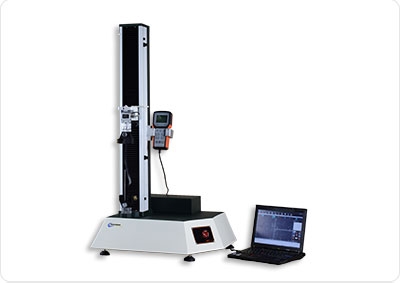

» 6081B computer type peel strength tester
- Computer peel strength test machine uses: PT-6081B computer system peel strength test machine for the company specifically for adhesive tape and adhesive industry design and development, for all kinds of adhesive products in different ways to peel strength test apparatus. Choose different fixture to do 180 or, or 90, T-shaped and floating roller method (applicable to high strength adhesive) peeling test and adhesive tensile and shear strength of split, split strength test.
- Product model
PT-6081B
Capacity selection
5, 10, 20, 50, 2, 100kg optional
Measurement and control software
Professional test software Windows platform
Accuracy of measurement
Better than 1%
Force resolution
1/500000
Power Resolution
1/10000
Effective range of measurement
0.5~100%F.S
Deformation display accuracy
Better than 0.5%
Test speed range
10 ~ 500mm/min, can be arbitrarily set
Test maximum stroke
Maximum 650mm, no fixture
Effective test space
Diameter 120mm range
Unit switch
A variety of measurement units, including international units, users can also customize the required units
Stop mode
Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure
Special function
Can be held in tension, holding pressure and fatigue test
Standard configuration
180 degrees peel off the fixture 1, 3 pieces of peel off the plate 50*150mm, PT-6020 manual roller 1, 232 data line 1, the instrument power supply line 1, CD disc Manual 1 copies, 1 copies, 1 copies of warranty card
Optional configuration
90 peel 1, Loop tack (clamp ring peeling) fixture 1, business computer 1
Machine size
Approximately 57 * 47 * 120cm (W * D * H)
Machine weight
About 70kg
Power
Stepping motor
Power Supply
1PH, AC220V, 50Hz, 10A, or specified
Computer peel strength test machine parameters
