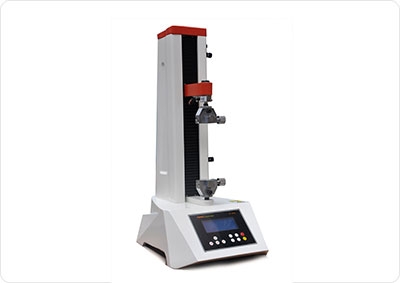

- PT-1198 tensile machine uses: PT-1198 tensile machine is the latest company to design and development of economic type testing machine, for tensile and peel, tear, shear, plug the stress, fatigue and other tests were carried out in adhesive products, paper products and printing and packaging, food, electronics, buttons and other industries. This testing machine has the advantages of high performance cost ratio, convenient operation and simple maintenance. It is an ideal equipment for quality inspection and production assistant for various factories.
Technical specification:
Model
PT-1198 Standard type
PT-1198S Upgrade
PT-1198GT Advanced type
Capacity selection
2、5、10、20、50、100kg
2、5、10、20、50、100kg
2、5、10、20、50、100、200kg
Measuring accuracy
Be better than±1%
Force measurement unit
Kgf、N、lbf
Stress unit
Kpa
Test speed
0.5～500mm/min（Screen settings）
Unit length
mm
Test items
Tension, compression, bending, etc.
Power energy
Breaking, holding pressure, timing
Breaking, holding pressure, timing
Fracture, pressure, timing, power, displacement, with elongation value display
Displacement measurement
no
Yes
Yes
Maximum stroke
500mm
Front and back space
90mm
Fixture configuration
Selection of tension or compression fixture 1
Computer expansion
No
no
USB computer interface and measurement and control software
Machine weight
about 20kg
Machine size
about 450×280×680mm(W×D×H)
Power Supply
220V，50Hz（or 110V，60Hz）
